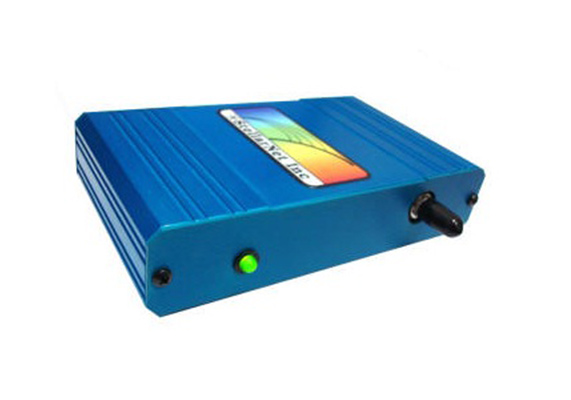

Blue-wave 微型光纖光譜儀
- Blue系列
|
動態范圍 |
2000:1 with 6 decades |
光譜分辨率 |
見下表 |
|
探測器類型 |
CCD, 2k/3k pixels |
功率 |
< 100 mA via USB port |
|
像素尺寸 |
14 x 200μm or 7 x 200μm |
積分時間 |
1ms to 8minutes |
|
衍射光柵 |
Holographic & Ruled |
狹縫尺寸 |
14, 25, 50, 100, 200μm |
|
光柵刻劃線 g/mm |
300, 600,1200,1800, 2400 |
雜散光 |
<0.1% at 435nm; <0.5% at 600nm |
|
光譜平臺 |
f/4, SymX-Czerny–Turner |
光纖輸入 |
SMA905 0.22NA single fiber |
|
重量 |
14 ounces |
軟件 |
SpectraWiz program & apps |
標準型號 2048 像素 CCD/PDA 探測器 狹縫類型決定分辨率
|
型號 |
波長范圍 (nm) |
光柵 g/mm |
Slit-200 (nm) res. |
Slit-100 (nm) res. |
Slit-50 (nm) res. |
Slit-25 (nm) res. |
Slit-14 (nm) res. |
|
UV |
200-600 |
1200 |
3.0 |
1.6 |
0.8 |
0.50 |
0.40 |
|
UV2 |
200-400 |
2400 |
1.5 |
0.8 |
0.4 |
0.25 |
0.20 |
|
UV3 |
220-350 |
3600 |
1.0 |
0.5 |
0.25 |
0.16 |
0.13 |
|
UVIS |
300-1100 |
600 |
6.0 |
3.2 |
1.6 |
1.00 |
0.80 |
|
VIS |
350-1150 |
600 |
6.0 |
3.2 |
1.6 |
1.00 |
0.80 |
|
VIS2 |
380-780 |
1200 |
3.0 |
1.6 |
0.8 |
0.50 |
0.40 |
|
NIR |
500-1150 |
600 |
6.0 |
3.2 |
1.6 |
1.00 |
0.80 |
|
NIR2 |
600-1000 |
1200 |
3.0 |
1.6 |
0.8 |
0.50 |
0.40 |
|
NIR2b |
785-1150 |
1200 |
3.0 |
1.6 |
0.8 |
0.50 |
0.40 |
|
NIR3 |
550-840 |
1800 |
2.2 |
1.2 |
0.6 |
0.35 |
0.28 |
|
NIR3b |
680-935 |
1800 |
2.2 |
1.2 |
0.6 |
0.35 |
0.28 |
|
NIR4 |
500-700 |
2400 |
1.5 |
0.8 |
0.4 |
0.25 |
0.20 |
|
NIR4b |
600-800 |
2400 |
1.5 |
0.8 |
0.4 |
0.25 |
0.20 |
|
UVN |
250-1100 |
600 |
6.0 |
3.2 |
1.6 |
1.00 |
0.80 |
|
UVNb |
200-1050 |
600 |
6.0 |
3.2 |
1.6 |
1.00 |
0.80 |
