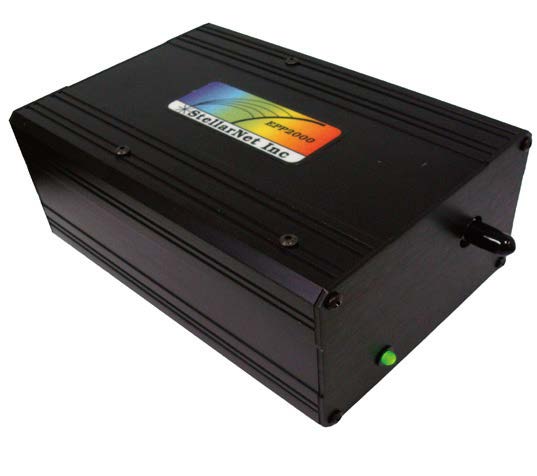

Black-wave凹面光柵光纖光譜儀
- Black系列

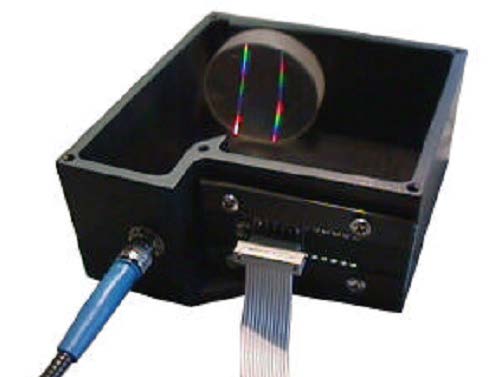

• 獨特凹面光柵設計，用于UV/VIS/NIR 應用
規格參數
|
動態范圍 光學分辨率 |
2000:1 with 6 decades |
尺寸 功率 |
69 x 100 x 150 mm |
|
see above |
100 mA @ 5 VDC |
||
|
探測器類型 |
2048 pixel CCD, PDA opt. |
接口 |
USB-2 or Wifi, RS232, SPI, 4-20mA Digital I/O or ethernet |
|
探測器范圍 |
200-1080 or 220-1100 nm |
數據傳輸 速度 |
30Hz or 1000Hz |
|
像素尺寸 |
14 μm x 200 μm |
積分時間 |
1 ms to 8minutes |
|
凹面光柵 |
Aberration corrected |
狹縫選擇 |
14, 25, 50, 100, 200 μm |
|
光柵類型 |
Holographic, 590 g/mm |
雜散光 |
0.02% at 435nm; 0.2% at 200nm |
|
光學平臺 |
f/2, Flat field - No mirrors |
光纖輸入 |
SMA905 0.22NA single fiber |
|
A/D 轉換 |
16-bit |
操作系統 |
Windows and Linux, Android, iOS |
|
信噪比 |
1000:1 CCD, PDA 2000:1 |
軟件 |
SpectraWiz program & apps |
標準型號
|
BLACK- Comet |
Wavelength Range (nm) |
Grating (g/mm) |
Slit-200 (nm) res. |
Slit-100 (nm) res. |
Slit-50 (nm) res. |
Slit-25 (nm) res. |
Slit-14 (nm) res. |
|
BLK-C |
190-850 |
590 |
6.0 |
3.0 |
1.5 |
0.85 |
0.75 |
|
BLK-CXR |
280-900 |
590 |
6.0 |
3.0 |
1.5 |
0.85 |
0.75 |
|
BLK-C-SR |
200-1080 |
concave |
8.0 |
4.0 |
2.0 |
1.5 |
1.3 |
|
BLK-CXR-SR |
220-1100 |
concave |
8.0 |
4.0 |
2.0 |
1.5 |
1.3 |
高分辨率型號
|
BLACK-Comet model |
Wavelength Range (nm) |
Grating (g/mm) |
Slit-14(nm) res. |
|
BLK-C-HR-UV |
200-600 |
590 |
0.40 |
|
BLK-C-HR-VIS |
380-750 |
590 |
0.40 |
